Applicable models: S8xNX
Please refer to the below.

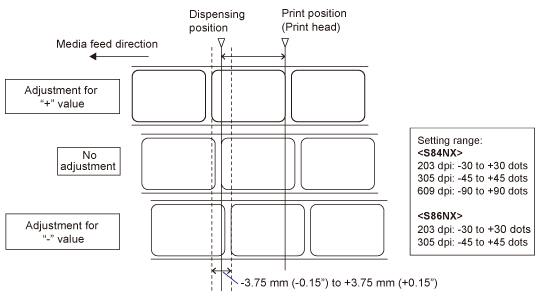

The above dispenser stop position indicates the stop position when the media sensor type is set to Gap. You can adjust the dispenser stop position during printing by registering the[Adjustments]menu to the[Shortcut]menu in advance. |

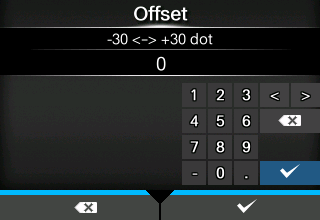

An adjustment range of the media stop position may vary depending on the thermal head density if the unit is the dot (constantly plus or minus 3.75 mm).
1.
|
5.
|

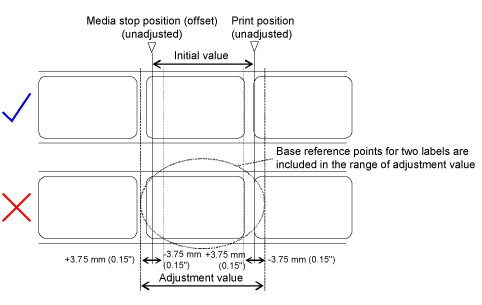

Do not allow the distance between[Pitch]and[Offset]after adjustments to exceed the size of 1 label (including liner). You can change the units to dots, " (inches), or mm in the[System]>[Regional]>[Unit]menu. |
02-01234-EN
