[04-80017-EN] SATO AIOT - Adding a Printer Manually via Supported Interface Settings

Problem/Question

How to add printer in All-In-One-Tool (AIOT) application.

Failed to add a printer.

Manually adding a printer.

Applicable To

SATO All-In-One-Tool (AIOT)

Resolution/Answer

Only SATO printers, specifically those supported by this All-In-One Tool, can be detected and added. Currently, the following interfaces are supported:

• LAN (Wired and Wireless, TCP/IP)
• USB (Plug & Play)

Before adding the printer, connect the printer to the PC or network. Please refer to the operator manual of each printer for details on the connection.

You can add a new printer to the All-In-One Tool by specifying its series, printer name, printer interface, IP address and port number, and USB port.

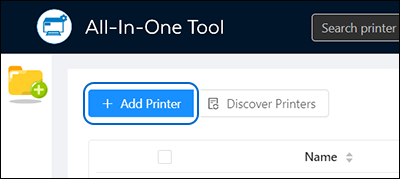

1. On the printer page, click [Add Printer].

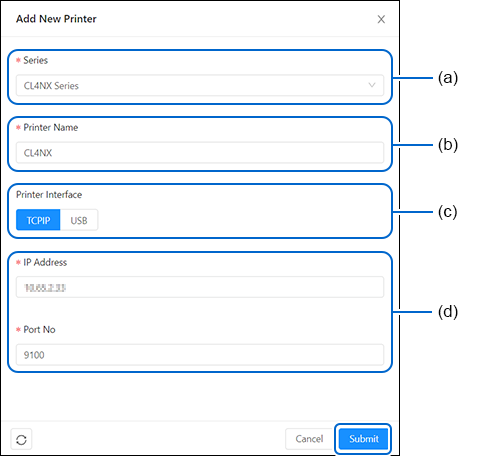

2. Specify the printer series (a), printer name (b), printer interface (c), and various required setting items for the selected interface (d).

3. Click [Submit]. The printer is added to the printer page.
