WS2/WS4 - Find The Printer Resolution DPI On Printer LCD

Problem/Question

How to find the Printer DPI resolution on printer

Applicable To

WS2/WS4 printers

Resolution/Answer

WS2/WS4

1. Refer diagram below to locate dpi information from serial number tags at bottom of printer.

Refer chart 1 below to obtain dpi information.

Model:	dpi	DOTS
WS208	203 dpi (8 dots/mm)	812 DOTS
WS212	300 dpi (12 dots/mm)	1120 DOTS
WS408DT/WS408TT	203 dpi (8 dots/mm)	812 DOTS
WS412TT/WS412DT	300 dpi (12 dots/mm)	1120 DOTS

2. Run a self-test to print a configuration label, which helps you
understand current settings of the printer.

Perform the following steps to run the self-test:
1. Turn off the printer.
2. Press and hold the FEED button and turn on the printer.
3. Both status lights glow solid orange for a few seconds. Next, they turn to green shortly and then turn to other colors. When LED 1 turns to orange and LED 2 turns to green, release the FEED button.
4. Press the FEED button to print a configuration label.

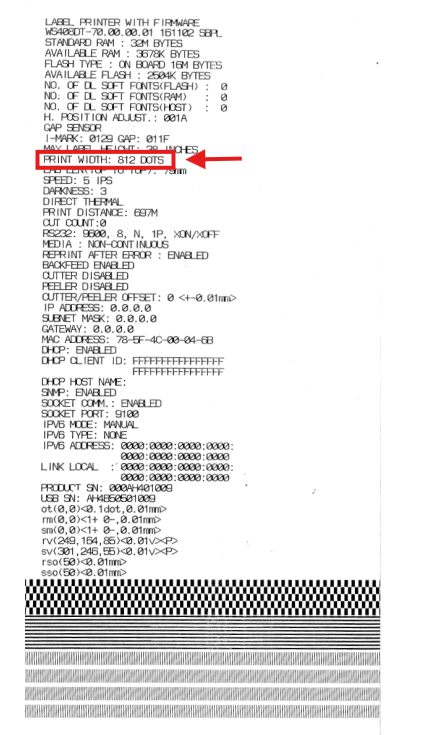

Sample test print.

* Applicable to WS2 and WS4 printers.
