WS4 - Paper Jam / Paper End Error

Problem/Question

1. Printer showing 2 static orange lights, not flashing.

2. Paper jam.

Applicable To

WS408TT, WS408DT, WS412TT, WS412DT.

Resolution/Answer

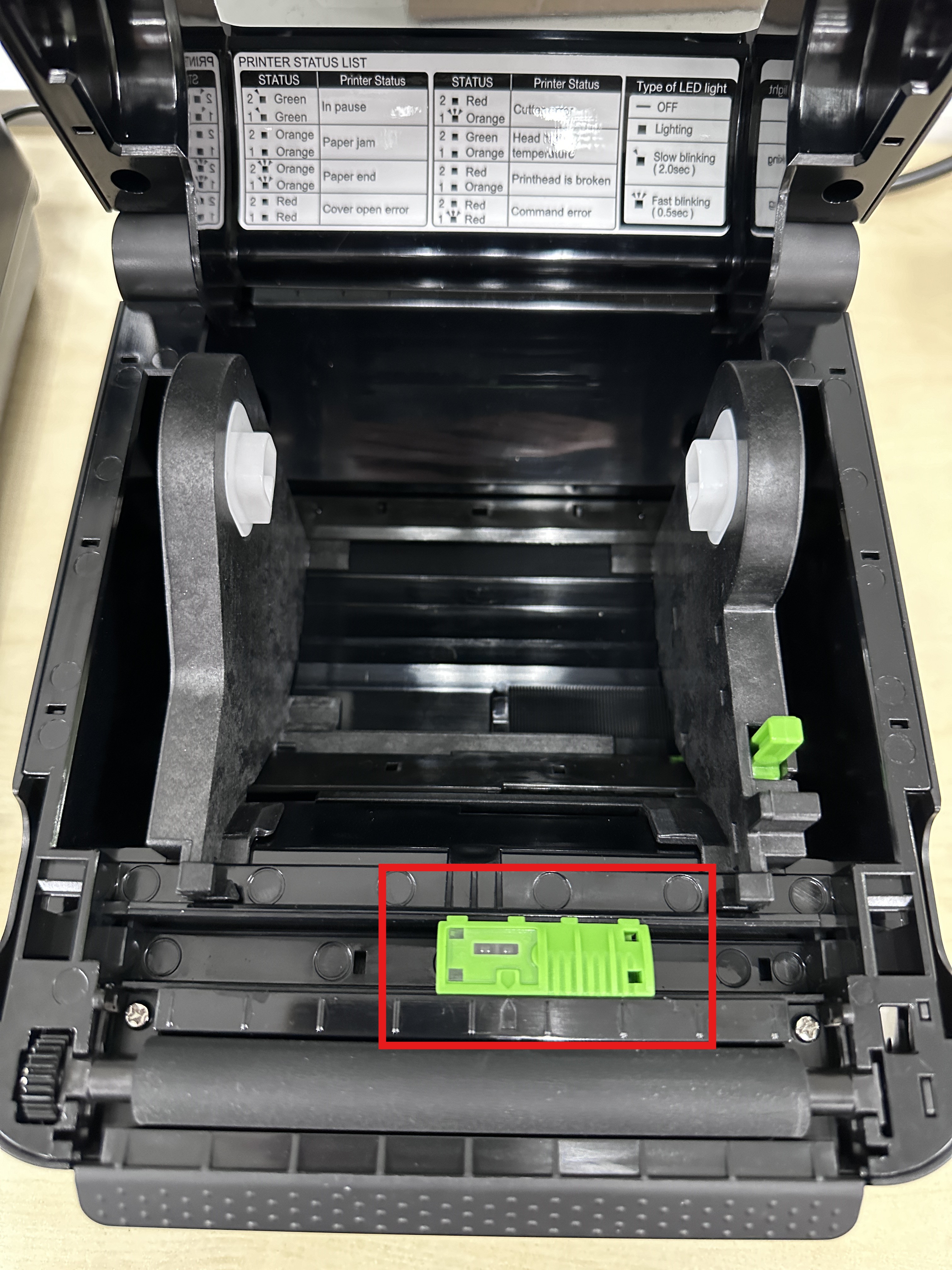

1. Check the label sensor position, it should be in middle position.

WS408DT, WS412DT	WS408TT, WS412TT.

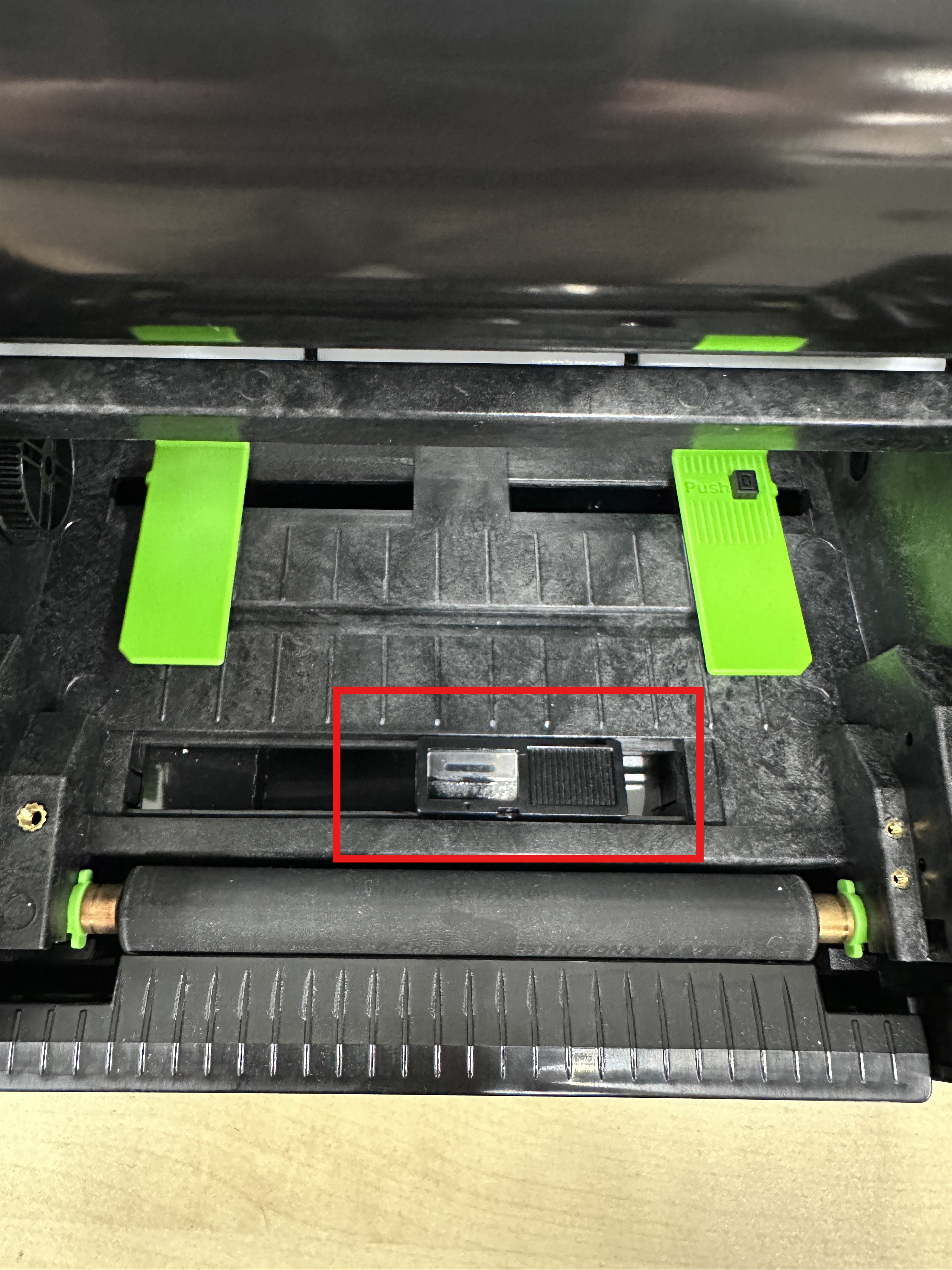

* Please note that for reflective sensor is movable within the entire width of the media. It detects gaps, notches and black marks not located at the center of the media. Please adjust the reflective sensor according to the media.

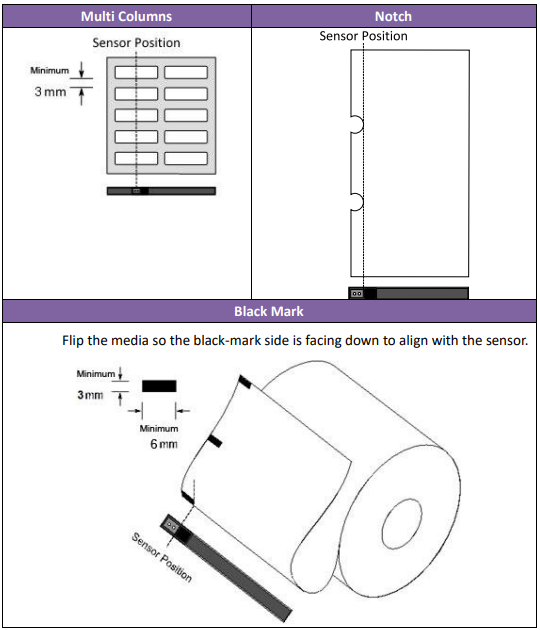

Please refer to below diagram:

2. Clean the label sensor.

Media sensors may not be able to detect the media correctly if it becomes dirty.

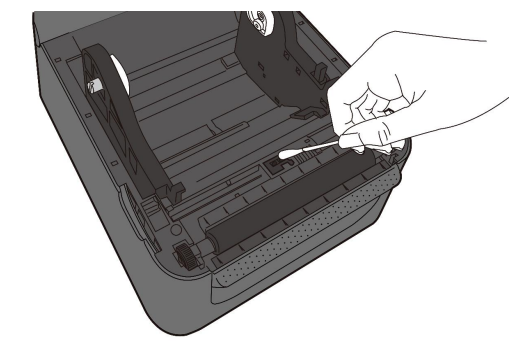

- Moisten a soft cloth or a cotton swab with cleaning liquid.
- Gently brush sensors to remove the dust away.
- Use a dry cloth to clean the residue.

3. Ensure the media load correctly. Refer to the following video.

WS4 Printer (TT Model) - Media Loading

WS4 Printer (DT Model) - Media Loading

4. Media Sensor Calibration

You need to calibrate the media sensor to print properly. WS printers
provide transmissive and reflective sensor calibration. Take the following
steps to use them.

1. Make sure the media is properly loaded, the print module is closed and
the printer’s power switch is set to the OFF position.

2. Press and hold the FEED button and turn on the printer.

3. Both status lights illuminate solid orange for a few seconds. Next, they
turn to green shortly and then turn to other colors. Do one of the
following to select the sensor:

- If you want to calibrate the transmissive sensor, when LED 1 turns to
green and LED 2 turns to red, release the FEED button immediately.
- If you want to calibrate the reflective sensor, when LED 1 turns to green
and LED 2 turns to orange, release the FEED button immediately.

4 Press the FEED button. The media calibration is complete after the
printer feeds 3-4 labels and stops.

03-80089-EN
