CL4/6NX & CL4/6NX Plus- Factory Test Print Mode

Problem/Question

How to check printer setting via factory test print mode.

Applicable To

CL4NX, CL6NX, CL4NX Plus, CL6NX Plus

Resolution/Answer

1. Power on the printer.

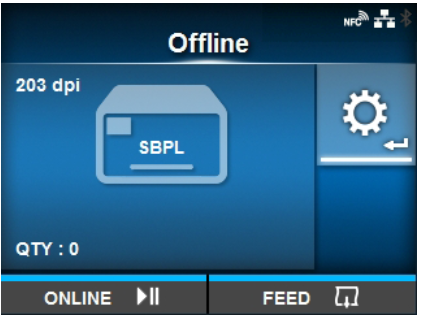

2. Press the button to put the printer into 'OFFLINE' mode.

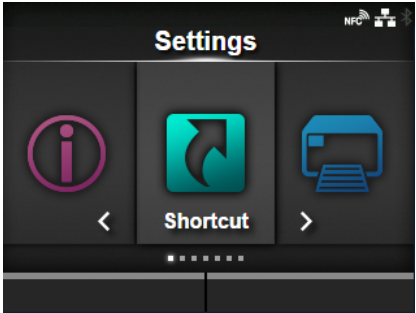

3. Then press the button to enter into 'Settings' mode.

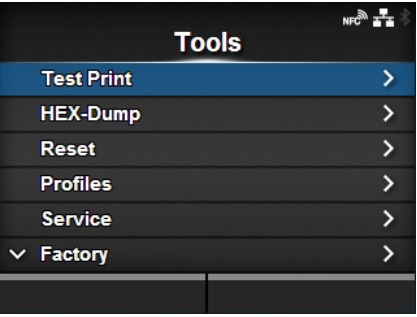

4. Use the arrow keys to look for 'Tools' then press the button.

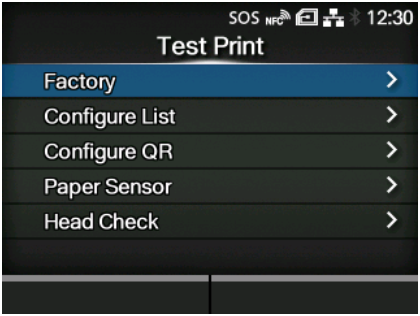

5. Look for 'Test print' then press the button.

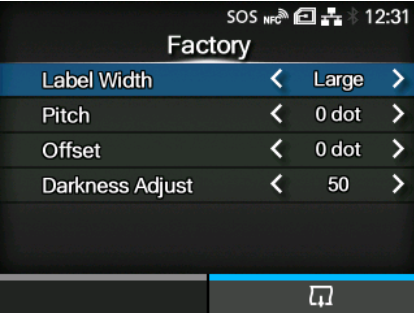

6. Then, 'Factory' then press the button.

7. Press the button to start the test print. Press the button again to pause the print.
8. To stop the test print, first pause the print and then press the  button.

9. Then press the button to put printer back into 'ONLINE' mode.

[03-80096-EN]
