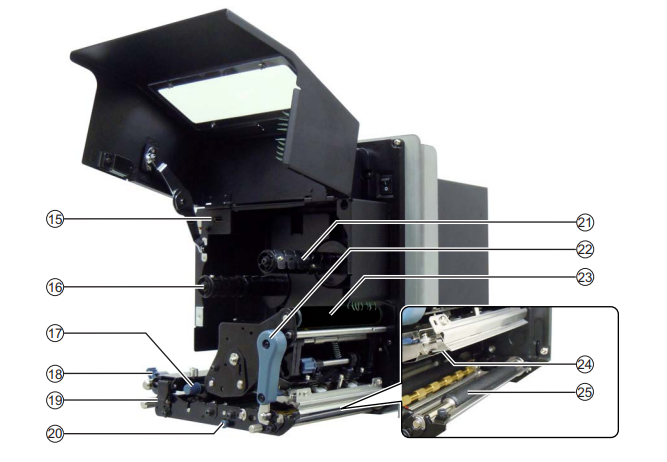

[02-01253-EN] Parts Identification for the Product（Internal View）

Applicable models： S8x-ex

⑮USB connector (Type A)
　For connecting to optional USB memory.

CAUTION

Be sure to perform a virus check for the USB memory before connecting it to the printer. SATO Corporation shall not be held responsible for a malfunction of the printer caused by a virus infection through the USB memory.

⑯Ribbon supply spindle
⑰Media sensor adjustment knob
Used to adjust the position of the media
sensor.
⑱Media guide
⑲Feed lock latch
Used to open the feed roller and media sensor
assembly.
⑳Pressure roller release tab
Used to release the pressure plate.
㉑ Ribbon rewind spindle
㉒ Head lock lever
Used to release the print head assembly.
㉓ Ribbon roller
㉔ Print head (Consumables)
The part to print on the media. Perform regular
maintenance.
㉕ Platen roller (Consumables)
