[02-01270-EN] Interface Connections

1. Make sure that the printer, host computer and applicator are powered

Set the power switch of the printer to the “O” position.

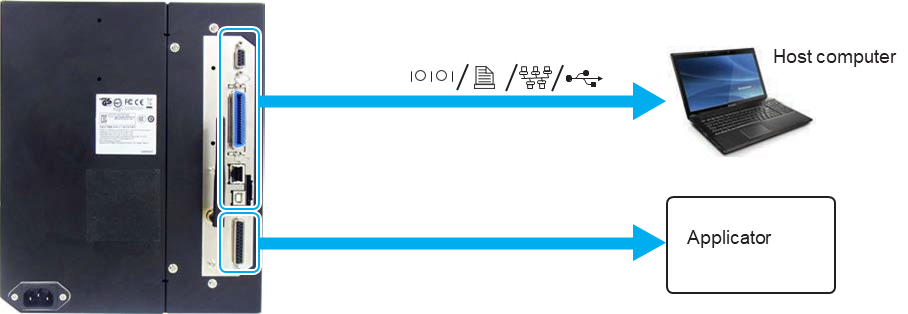

2. Connect the printer to a host computer with one or more of the available interface

Use a cable that is compatible with the standard of the interface board as stated in Interface Specifications. Check the orientation of the connector before you make the connection.

3. Connect the applicator cable from the EXT connector of the printer to the

Use a cable that is compatible with the standard of the interface board as stated in Interface Specifications. Check the orientation of the connector before you make the connection.
