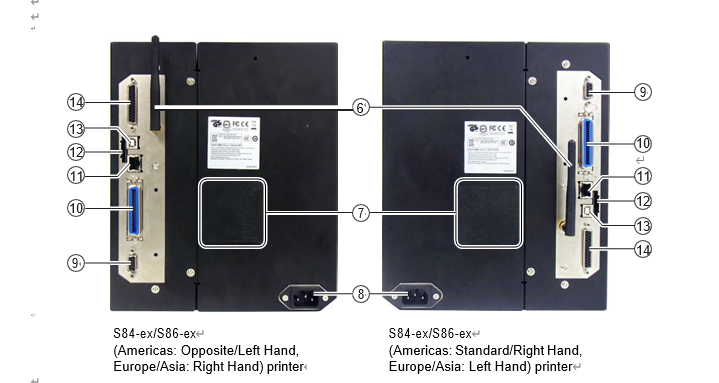

⑥ Wireless LAN (optional) antenna
To install the optional wireless LAN antenna.
⑦ Fan filter
To prevent dust from entering the printer.
⑧ AC input terminal
Supplies power to the printer through the inserted power cord.
Before connecting, make sure that the AC voltage of your region is in the range of AC 100 to 240 V, 50 to 60 Hz.
⑨ RS-232C connector
To connect the printer to the host computer using the RS-232C serial interface.
⑩ IEEE1284 connector
To connect the printer to the host computer using the IEEE1284 interface.
⑪ LAN connector
To connect the printer to the host computer using the LAN interface.
⑫ SD CARD slot
To install an SD card for additional memory.
|
Be sure to perform a virus check for the SD card before connecting it to the printer. SATO Corporation shall not be held responsible for a malfunction of the printer caused by a virus infection through the SD card. |
⑬ USB connector (Type B)
To connect the printer to the host computer using the USB interface.
⑭ EXT connector (External signal interface)
Interface connector for external signals. Connect the optional applicator to this terminal.
