CG4 - Default Setting (Factory Preset)

Resolution/Answer

When default setting mode is selected and executed in Operation Setting mode, the printer will reset to the default setting (factory preset) as listed below.

No.	Items to be reset	Default value
1	Offset (V, H)	Vertical = 0 dot, Horizontal = 0 dot
2	Pitch Offset	0 dot
3	Cut Offset	0 dot
4	Dispensing Offset	0 dot
5	Tear-Off Offset	0 dot
6	Label Size	Pitch 896 dot x Width 832 dot [203 dpi] Pitch 1344 dot x Width 1248 dot [305 dpi]
7	Print Speed	75 mm/sec (3 Inches/sec)
8	Print Darkness	3A
9	Sensor Type	Gap
10	Paper End Search	Roll
11	Zero Slash	Enabled
12	Proportional Pitch	Enabled
13	Initial Feed	Disabled
14	Auto Feed	Disabled
15	Operation mode:
	Continuous	- (No setting)
	Tear Off	- (No setting)
	Cutter	Mode 1 (Head position)
	Dispenser	Mode 1 (Head position)
16	Interface:
	RS-232C	Baud rate=19200 bps, Protocol = Protocol for driver
	LAN	Protocol for driver (ENQ response mode) *1
	IEEE 1284	Protocol = Protocol for driver
	USB	Protocol = Protocol for driver

*1. To be connected by Port1024 and Port1025 (2 port connections) or Port 9100 (1 port connection)

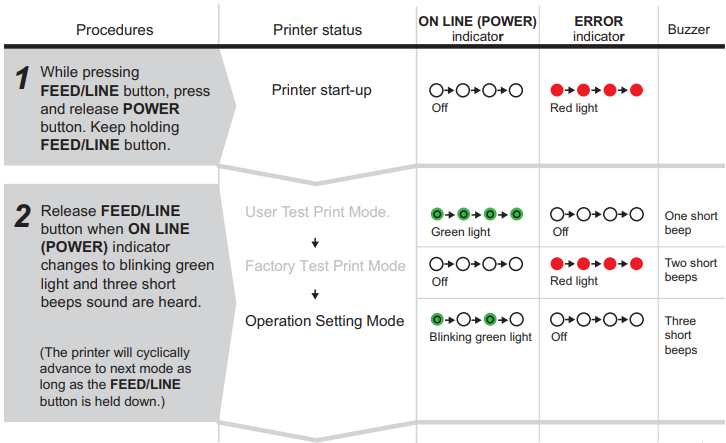

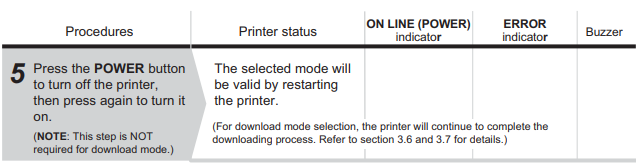

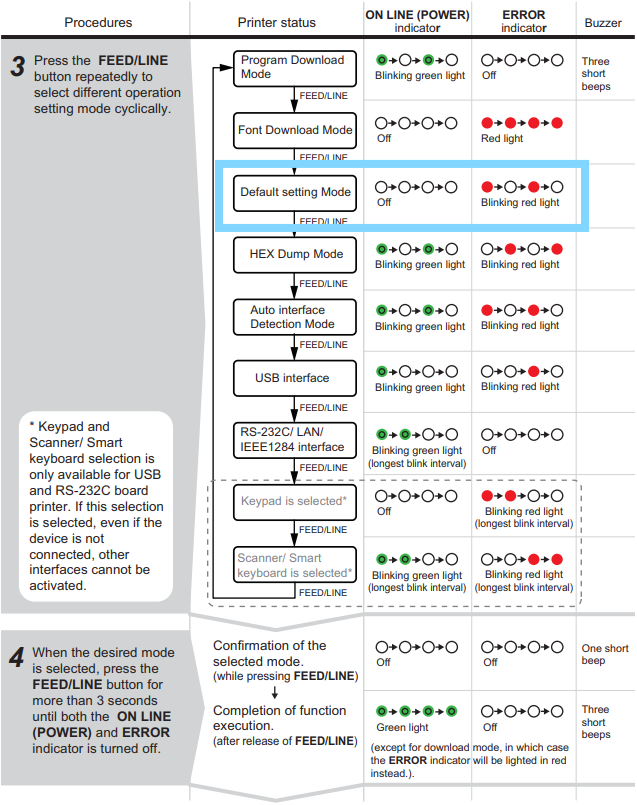

Steps to factory preset:

When the default setting mode is selected and executed, the printer will be set to default setting.

03-80133-EN
