[03-80005-EN] CL6NX Plus UHF Inlay Configuration Guide

Problem/Question

How to setup UHF Inlay for CL6NX Plus UHF printer

Configuring UHF Inlay for CL6NX Plus UHF

Applicable To

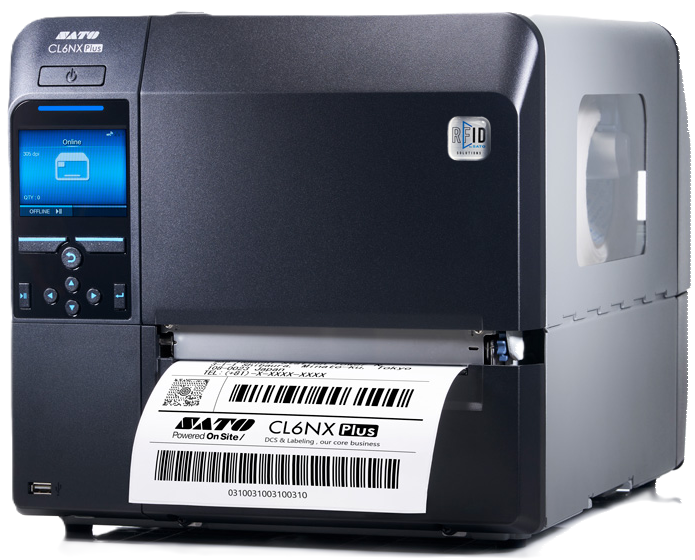

SATO CL6NX Plus UHF

Resolution/Answer

The CL6NX Plus thermal printer encoder is capable of printing and encoding smart labels conforming with the EPC global Class 1 Generation 2 standard (ISO / IEC 18000 6C). This page will help you select a SATO tested inlay and configure your CL6NX Plus to print and encode it.

* UHF Option = Compliant with EPC Class 1 Generation 2 (ISO / IEC 18000 6C) Standard

The following recommendations have been tested successfully at SATO. Results may vary in the actual customer installation due to overall system tolerances. Validation of functionality in the actual system is therefore recommended.

Four easy steps of RFID configuration

1. Examine labels to determine printer settings.
   • Refer to the UHF Inlay Configuration Guide for tested inlays.
2. Set up printer. (Refer to the web manual for printer settings)
   • RFID Settings
3. Set labels and carbon ribbon.
4. Confirm operation by printing / encoding a label.

Remarks
Please check with your local SATO office regarding printer and inlays availability in your region.
