CL4/6NX & CL4/6NX Plus - Auto Calibration

Perform the auto-calibration for the selected media sensor.

Auto-calibration is not available if you have installed the optional linerless kit.

1. Press the  power button on the operator panel for more than one second to power on the printer.

2. When the printer is in online mode, press the button on the operator panel to change to offline mode.

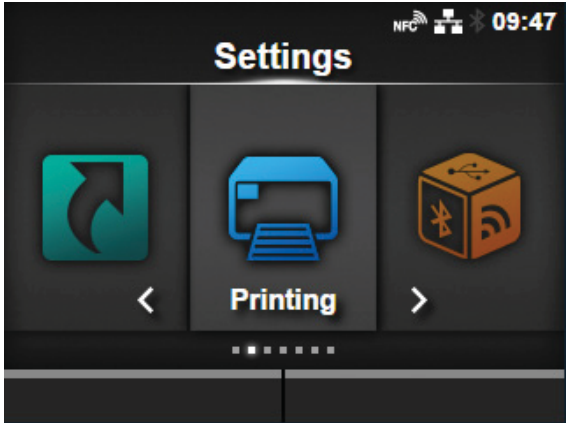

3. Press the button to show the Settings menu.

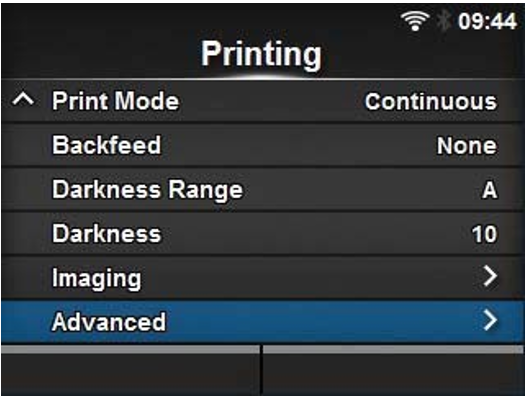

4. Press the   buttons to select Printing and then press the button.

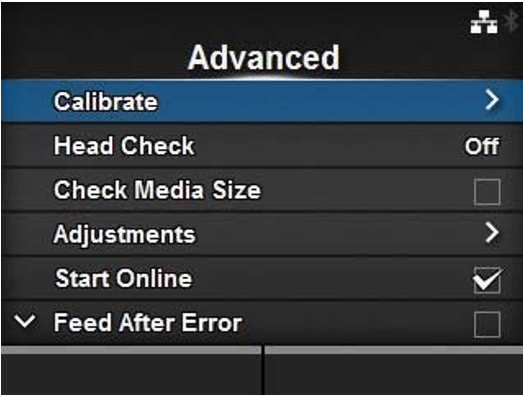

5. Press the buttons to select Advanced and then press the  button.

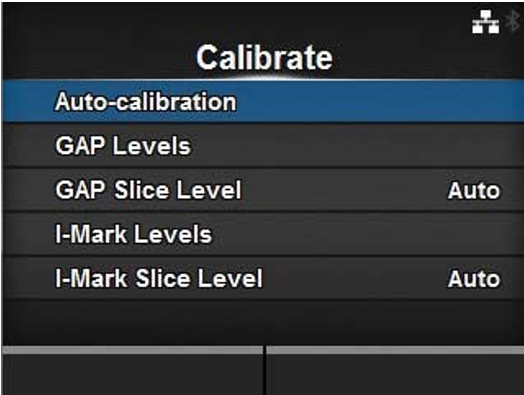

6. Press the  buttons to select Calibrate and then press the  button.

7. Press the buttons to select Auto-calibrate and then press the  button.

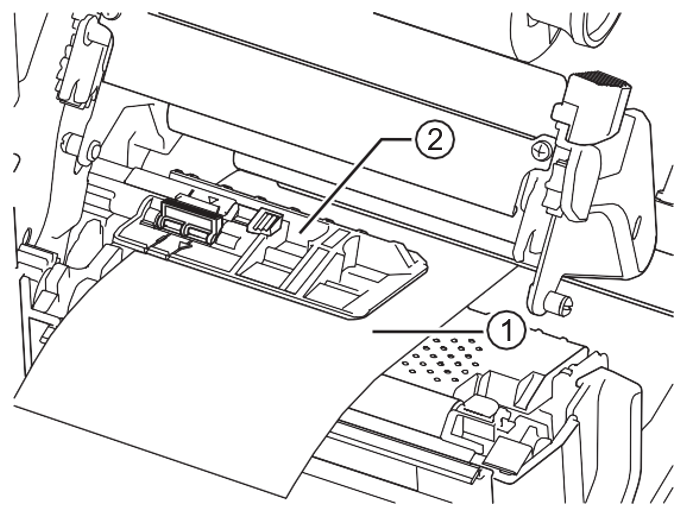

8. Pass the media 1 below the media sensor guide 2.

If you are using labels, remove the label from the liner. Align it so that the media sensor does not sense the I-mark (black mark).

9. Close the print head.

To get the correct adjustment result, adjust after you have closed the print head.

10. Press the buttons to select the type of sensor to be adjusted.

• • Gap + I-Mark: Perform the adjustment for both the Gap sensor and I-mark sensor.
  • GAP: Perform the adjustment for the Gap sensor.
  • I-Mark: Perform the adjustment for the I-mark sensor.

11. Press the right soft button or  button to start the sensor adjustment.

12. The sensor adjustment result shows. To exit the adjustment, press the right soft button.

13. Set to offline mode. Press the right soft button to confirm that the media feeds correctly.

14. If the media does not feed correctly after the Auto-calibration, clean the sensor portion and then try again.
