CL4NX Plus - Can't Detect Odd Shape Labels (Error 1008 - Out of Paper)

Problem/Question

Printer show #1008 (Out of Paper) error.

Unable to print odd shape labels.

Applicable To

CL4NX. CL6NX, CL4NX Plus, CL6NX Plus

Resolution/Answer

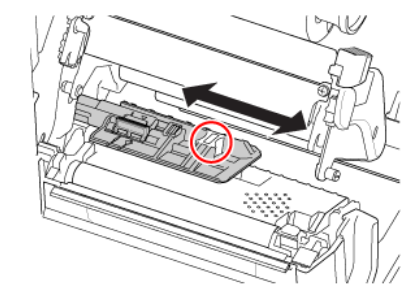

• Adjust the media sensor guide to the position where it can detect the I-mark or gap of the media.

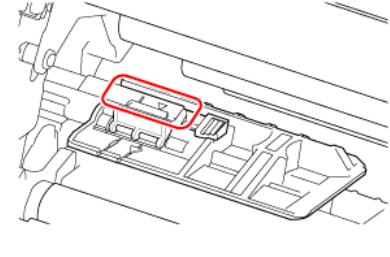

• The I-mark sensor (reflective type) is below the mark, and the Gap sensor (transmissive type) is below the  mark.

Example:
Adjust the printer's label sensor guide position (pic 1) to match the position (Sample 1) or (pic 2) to match the position (Sample 2):

Label sensor guide	Label (Sample)

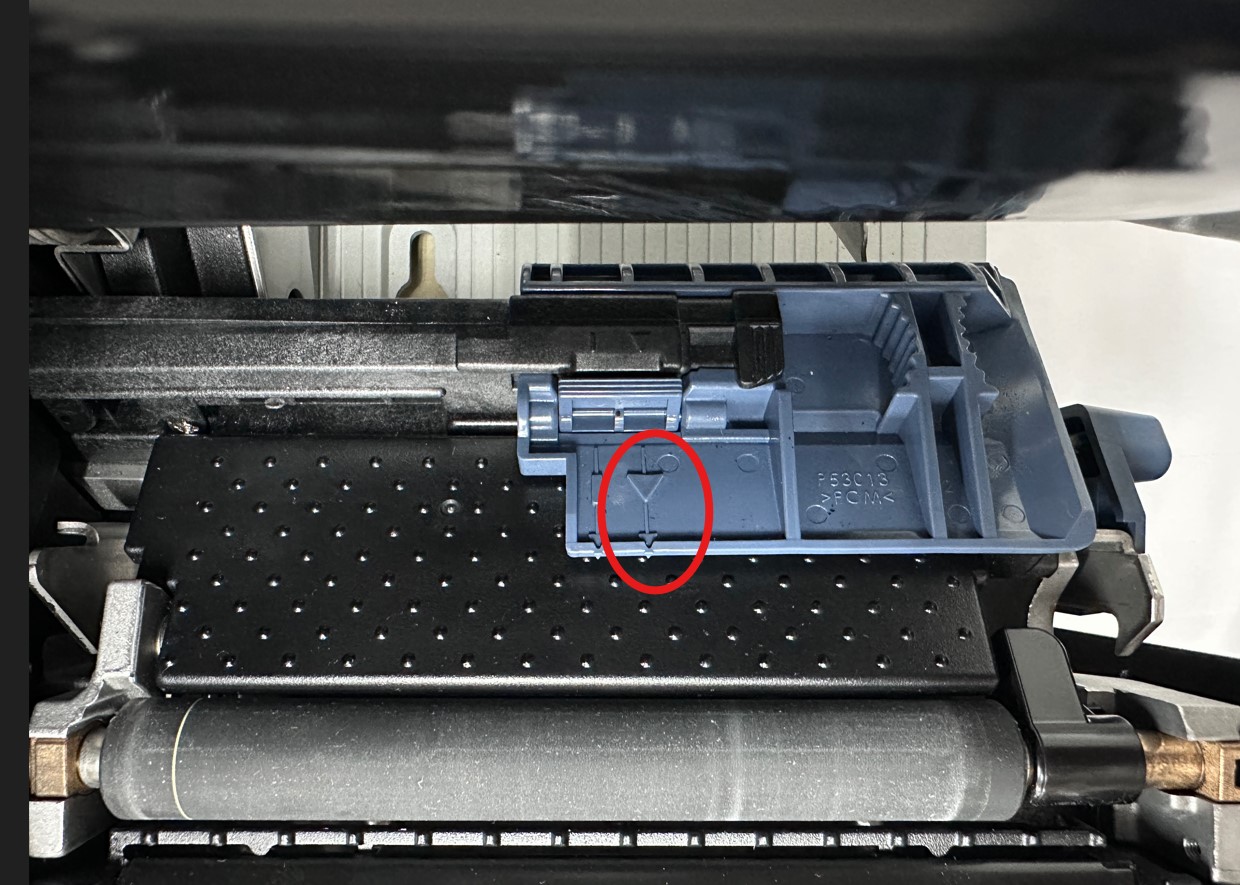

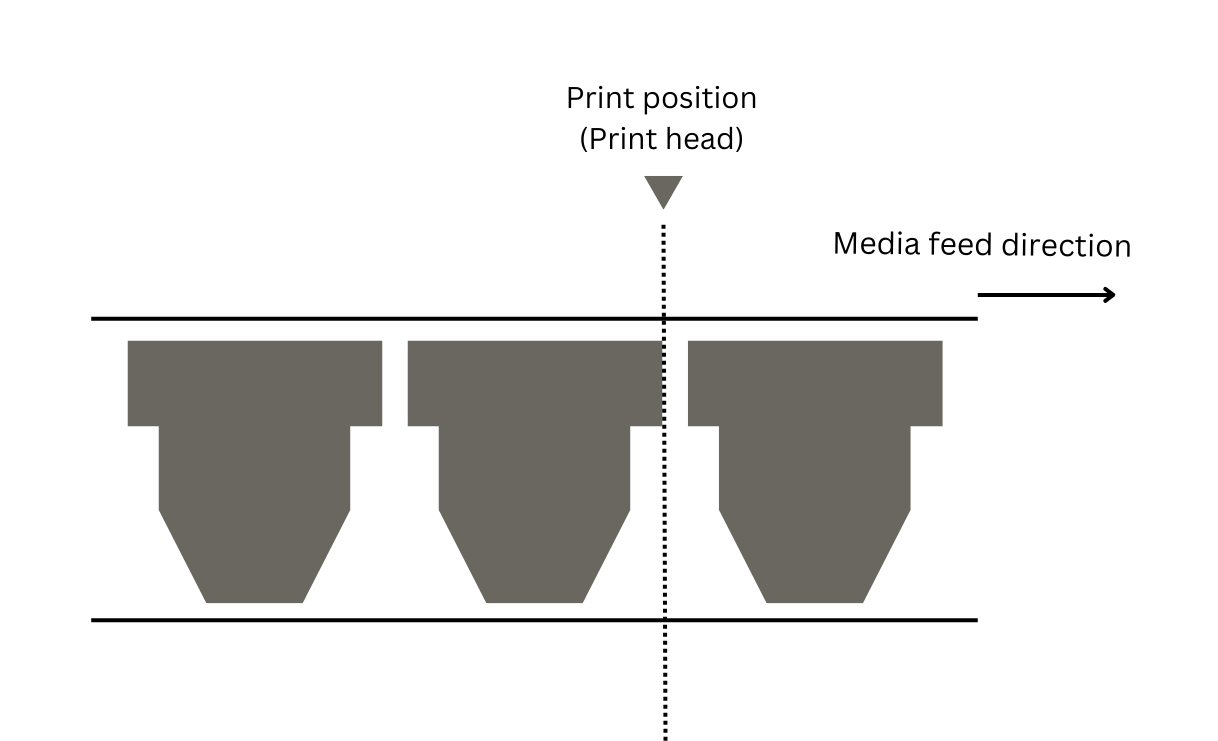

Pic 1 (Gap sensor)	Sample 1

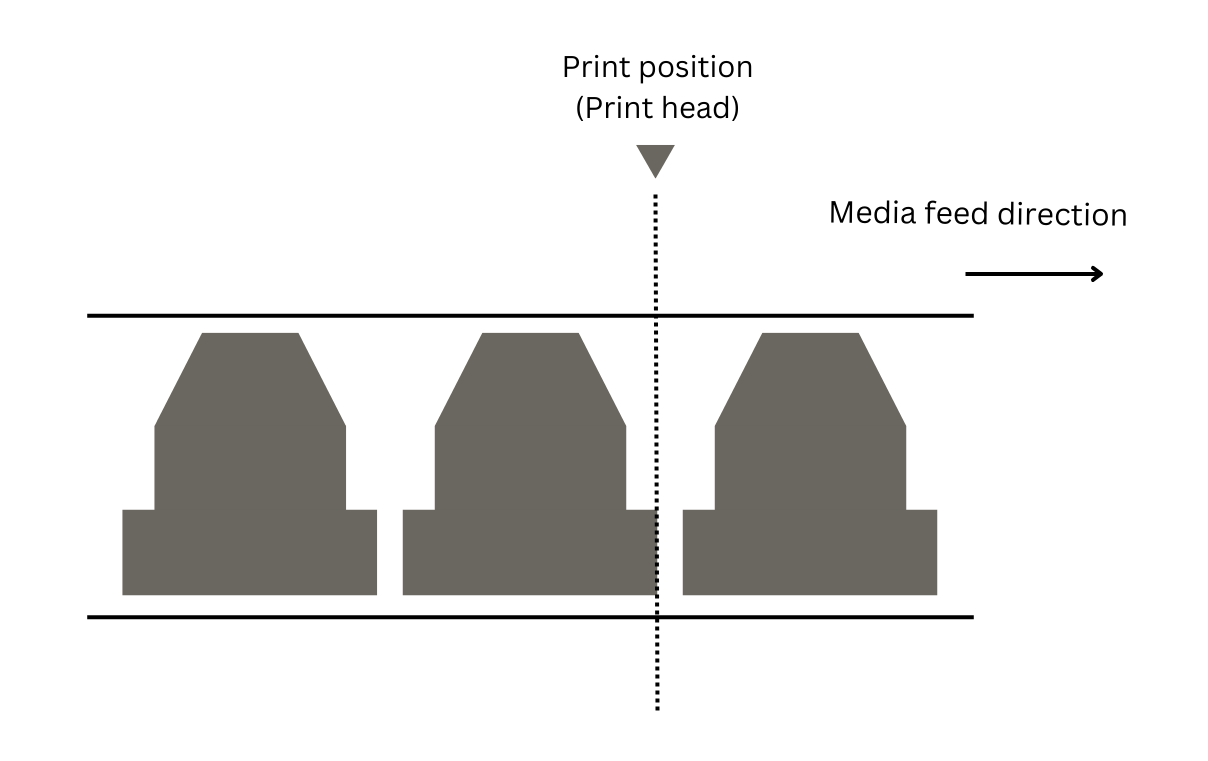

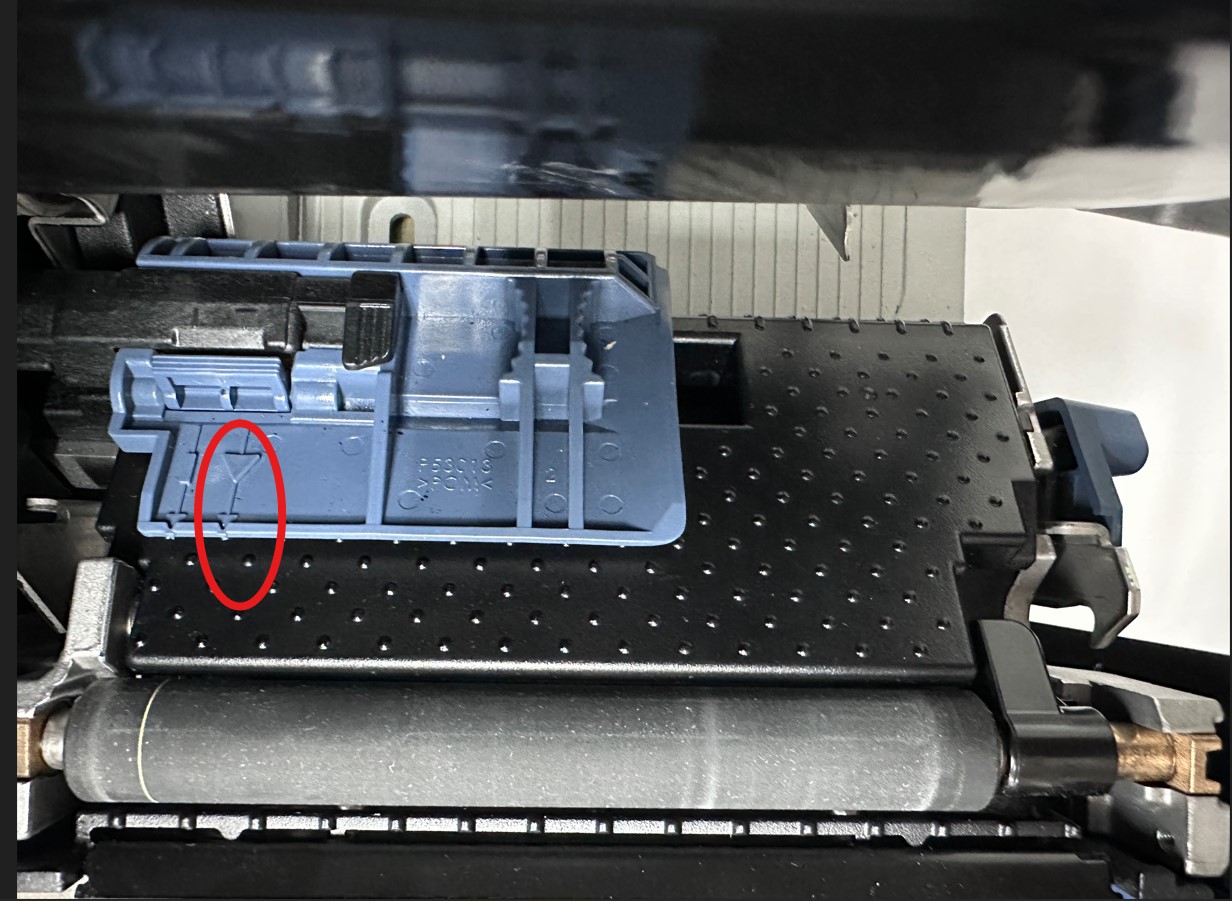

Pic 2 (Gap sensor)	Sample 2

2. Perform a sensor calibrate by refer to below link:

CLNX sensor calibration

[03-80116-EN]
