Loading Label with Dispenser

Applicable models: S8x-ex

Please refer to the below.

1. Open the top cover.

Open the top cover fully to prevent accidental drop of the cover.

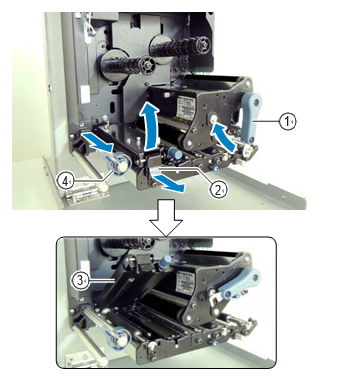

2. Turn the head lock lever ① clockwise to unlock the print head.

3. Pull the feed lock latch ② to unlock the feed roller and media sensor assembly ③

The feed roller and media sensor assembly will flip open.

4. Pull the media guide ④ away from the

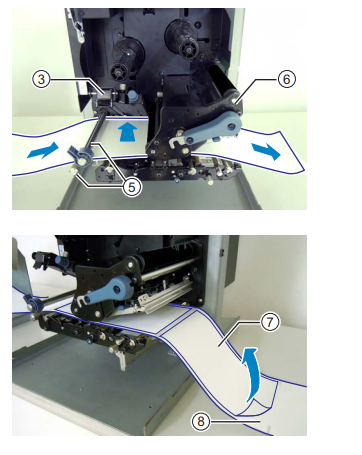

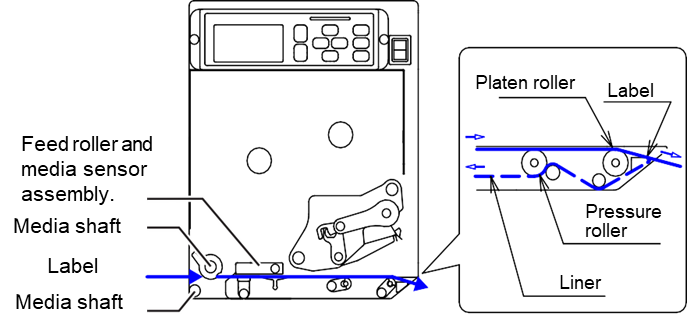

5. Pass the media between the media shaft ⑤, below the feed roller, and the media

sensor assembly ③, and the print head assembly ⑥ and extend it out the discharge outlet.

Make sure that the end of the media extends out of the discharge outlet.

6. Push the media until the innermost edge of the media lightly touches the printer center

7. Pull the label out from the discharge

Remove about 30 cm (11.8”) of labels ⑦ from the liner ⑧.

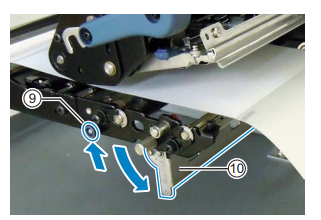

8. Push the pressure roller release tab ⑨ up to release the pressure roller plate ⑩.

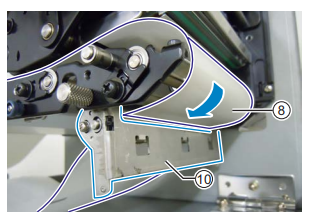

9. Pass the liner ⑧ through the gap of the pressure roller plate ⑩.

10. Push the center of the pressure roller plate ⑩ to latch it in place.

11. Turn the head lock lever counterclockwise to lock the print head.

12. Close the top cover.

13. After loading the media and ribbon, perform a test print to make sure that the media is loaded correctly.

Refer to the Test Print Mode for details on how to perform a test print.

01-01258-EN
