Loading Media without Using Dispenser

1. Refer to steps 1 through 6 of the Loading Label with Dispenser to load the media.

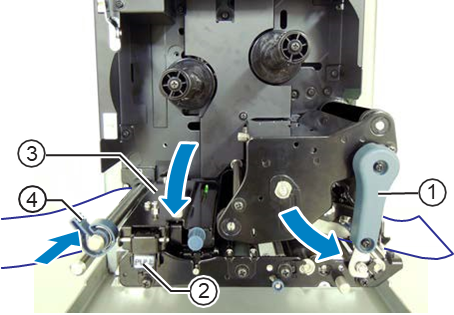

2. Turn the head lock lever ① counterclockwise to lock the print head.

3. Press the feed roller and media sensor assembly ③ down until the feed lock latch ② is locked.

4. Push the media guide ④ lightly against the outermost edge of the media.

5. Close the top cover.

6. After loading the media and ribbon, perform a test print to make sure that the media is loaded correctly.

Refer to the Test Print Mode for details on how to perform a test print.

When closing the top cover, be careful not to pinch your fingers
